PowerSDR has been just calibrated, using a Wandel&Goltermann PS-19 generator, old but very clean spectrally, set at 10 MHz,
-70 dBm
The background level is at the same level where it is with no input signal
by I2PHD, February 12, 2009
|

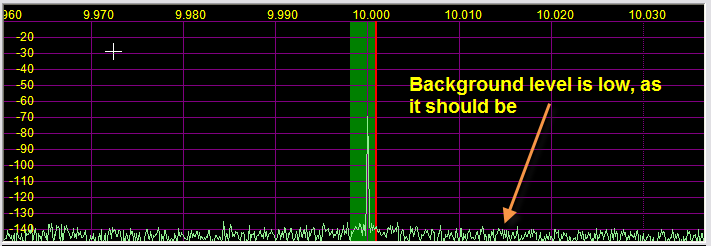

PowerSDR has been just calibrated, using a Wandel&Goltermann PS-19 generator, old but very clean spectrally, set at 10 MHz, The background level is at the same level where it is with no input signal |
|

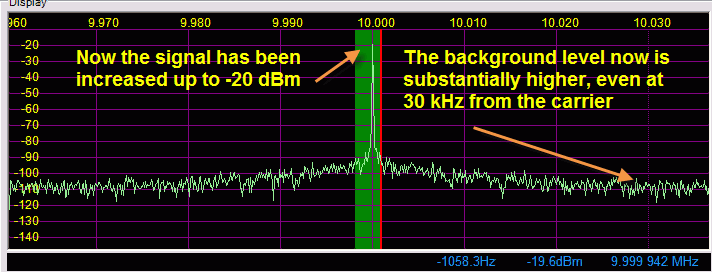

Now the level has been increased to -20 dBm. The backround noise has increased too by more than 30 dB at 30 kHz from the carrier. Probably the responsible is the generator, but I don't have an 8640B to check with |
|

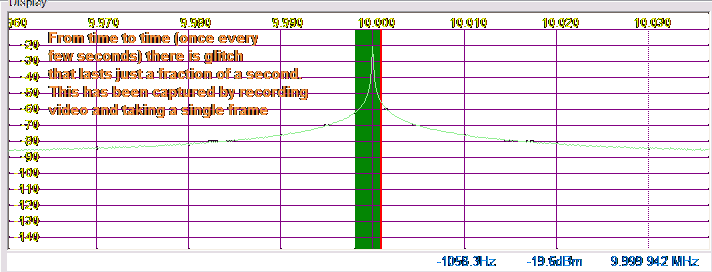

And this is an aural annoying glitch (a "tick") that visually shows as in the picture, taken by selecting a single frame from a video recording of the screen of the PowerSDR |
